Blake's bounty hunter gun - bits added

With Blake's bounty hunter gun assembled, its time to add the details.
Photo 2 is i'm guessing part of the sight mount and is made from EMA's "Structural Flange".

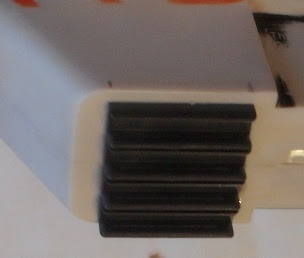

Photo 3 is the ribbed detail on the underside, made from four of EMA's "Beam Splices" laid in a row.
Photo 4 is the rear of the gun, made from a disc of ABS. This is the first time working with the material, and i found it a bit of a bind - very tough to cut and shape, but pretty easy to sand. Its detailed with a couple of EMA's "Ladder Supports" cut down.
Photo 5 - Directly in front of the rear disc is a row of square rods, ended by a curved shape just above the rigger. That has to be the 3.3mm of the square rod and the rear disc.
So i cut out one from the ABS and then tried to heat it to make it bend to match the curve of the gun.
Nope, wasn't having it.
So then i tried multiple layers of Plasticard until i got my 3.3mm, heated up and bent.
Nope, wasn't having it.
But then i realised the off-cut of 40mm piping i was using as a former to bend the shapes on looked to be about the thickness i was after. So crudely cut a bit off and, sure enough, it lay on the gun no rpobs.
So off i go to B&Q to buy a 40mm joing pice for the price of £1.08 and cut me a ring from it 2cm wide.
Photo 6 is the cut down ring now attached.
